Nonfluorobased Backsheet

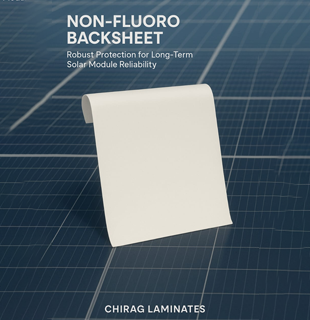

METASOL™ Non-Fluorobased Solar Backsheet
High-Durability & Eco-Friendly Laminate for Photovoltaic Modules
Brand:METASOL™
Category: METASOL™ Non-Fluorobased
Product Overview:
METASOL™ Non-Fluoro Solar Backsheets are next-generation multi-layer laminates developed by Chirag Laminates Pvt. Ltd. to deliver exceptional UV resistance, electrical insulation, and long-term outdoor stability—without the use of fluoropolymers. Designed with environmental sustainability and recyclability in mind, these backsheets provide a cost-effective and RoHS-compliant alternative for modern PV module manufacturers.
Key Construction:
PET Core + In-House Coatings Multilayer structure combining high-grade optical BOPET film with UV-stabilized adhesive and proprietary outer coatings for abrasion, moisture, and weather resistance.
-
Top Layer (Weather-Resistant Coating): Fluoro-free UV-protective acrylic/polyester blend
-
Core Layer: High-durability PET (100–250 micron range)
-
Customization: Can be offered in white or transparent versions depending on module design.
Performance Features:
-
Fluoro-Free: 100% free from PVDF or Tedlar®, ensuring environmental safety
-
High Reflectivity: Maintains over 85% light reflectance for module efficiency
-
UV & Hydrolysis Resistance: Up to 2000 hours UV exposure tested
-
Excellent Adhesion: Compatible with EVA and EPE
-
Electrical Insulation: Dielectric strength >20 kV
-
RoHS & REACH Compliant: Conforms to environmental safety standards
Applications:
-
Crystalline Silicon (c-Si) PV Modules
-
Flexible Thin-Film Panels
-
Double-Glass Replacement Designs (front-side glass + METASOL rear)
-
Bifacial modules (Transparent METASOL enhances rear-side yield)
Nonfluorobased Backsheet provides sustainable and reliable protection for solar energy systems.
Test Standards & Certifications:
-
IEC 61215: Thermal cycling and humidity freeze
-
IEC 61730: Electrical insulation and safety
-
Internal QA: BDV, peel strength, moisture permeability
-
Custom testing protocols available for OEM partnerships.
Eco Commitment:
By avoiding fluoropolymers, METASOL™ Non-Fluoro backsheets contribute to better end-of-life recyclability of solar modules, aligning with global sustainability targets and EPR (Extended Producer Responsibility) norms.
