Class H Pure Aramid Paper
Metastar® Aramid Paper
High-Performance Class H Insulation Material
Brand: Metastar
Category: Aramid Paper
Product Overview:
Metastar® Aramid Paper is a premium high-temperature insulation material engineered for applications demanding thermal stability, electrical integrity, and mechanical strength. Manufactured from meta-aramid synthetic fiber, it provides a reliable solution for Class H insulation systems (up to 180°C).
Key Features:
-
Class H Insulation (up to 180°C)
-
Exceptional Dielectric Strength
-
Excellent Dimensional Stability
-
Non-flammable & Self-extinguishing
-
Tear and Puncture Resistant
-
Lightweight and Flexible
-
UL APRROVED
Applications:
-

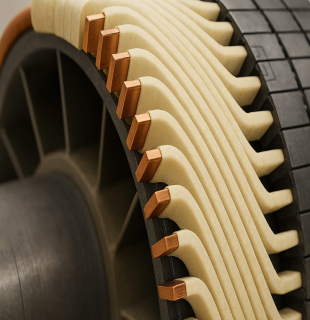

Motors and Generators: Slot liners, phase insulation, interlayer insulation
-
Transformers: Layer insulation, wrapping, core insulation
-
EV Battery Packs: Thermal and electrical separation
-
Electronics: PCB protection, FPC shielding, cable insulation
Class H Pure Aramid Paper ensures reliable performance in the most demanding high-temperature environments.
Available Grades:
YT 510: Calendared meta-aramid insulating paper, has a high
dielectric strength,
mechanical strength, flexibility and resilience. Thickness is from 0.05mm to
0.76mm.
YT 511: Uncalendered meta-aramid insulating paper has low
density, impregnated and saturated performance and better, resin
curing effect. Thickness is from 0.13mm to 0.58mm.
YT 516: Calendered meta-aramid insulating paper, has low
halogen content, non-toxic, and environmentally friendly. Thickness is from
0.05mm to 0.38mm.
Availability:

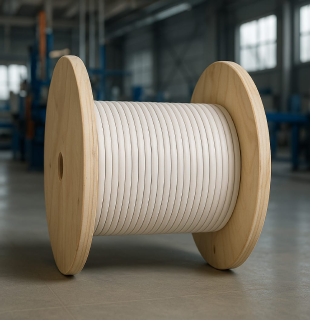

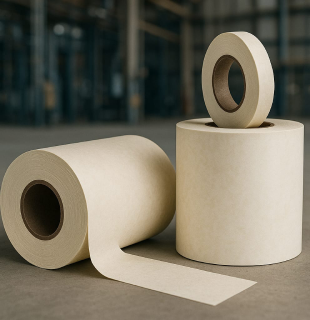

Formats: Rolls, sheets, slitted tapes
Widths: Up to 1000 mm
Custom sizes & punching available upon request
Reliable Insulation Solutions
