Aramid Paper Laminates
Aramid Paper Laminates
Brand: METALAM
Category: Electrical Insulation Laminates
Product Overview:
Chirag Laminates' METALAM brand of Aramid Paper Laminates is engineered to meet the high-performance requirements of modern electrical insulation systems. Manufactured using high-grade aramid paper from house of METASTAR bonded with polyester film or other compatible substrates, these laminates offer exceptional mechanical strength, thermal endurance, and dielectric reliability. Ideal for use in Class F (155°C) insulation systems, METALAM laminates are widely applied in electrical motors, generators, transformers, and EV battery components where thermal stability and mechanical integrity are critical.
Key Features:
-
Excellent thermal resistance
-
Superior dielectric strength and electrical insulation
-
Outstanding mechanical durability and tear resistance
-
Flame retardant and chemically stable
-
Lightweight and dimensionally stable under heat and stress
-
Low moisture absorption and high breakdown voltage
Applications:
-

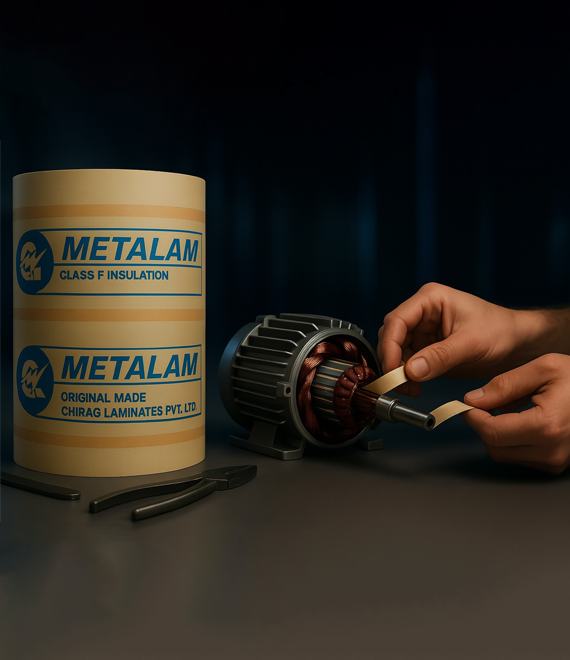

Slot liners and phase insulation in electric motors
-
Interlayer insulation in dry-type transformers
-
Wrapping for high-frequency chokes and coils
-
EV battery module separators and thermal shields
-
Aerospace and automotive high-voltage systems
These laminates are flame-retardant, chemically stable, and maintain dimensional stability under heat and stress, making them suitable for harsh industrial conditions.
Product Variants:
Uncalendered Aramid Paper Laminates: Enhanced flexibility
for automated winding and tight bends.
Aramid Polyamide Laminates: Aramid Polyamide Laminates
used in battery packs as a seperator.
Form Available:

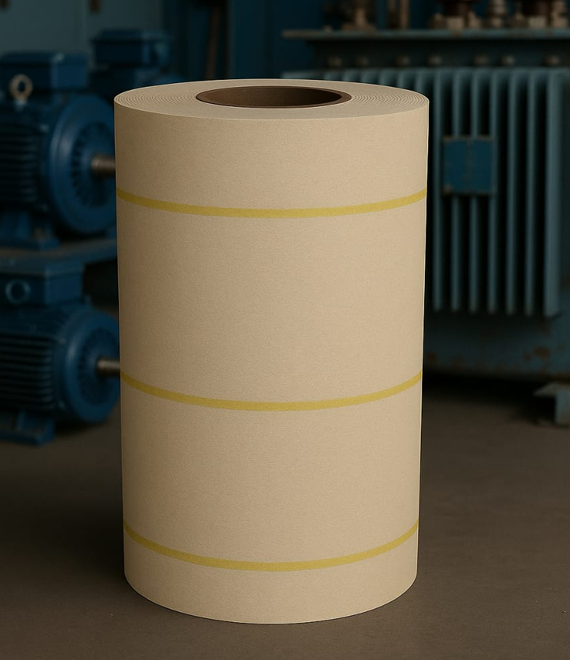

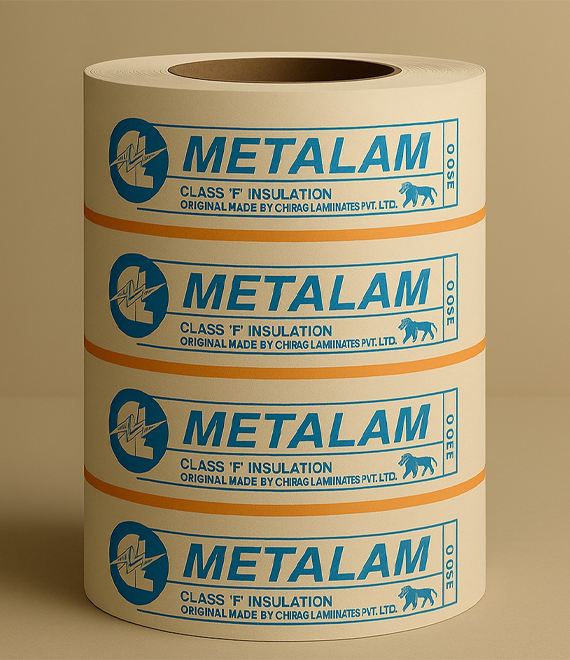

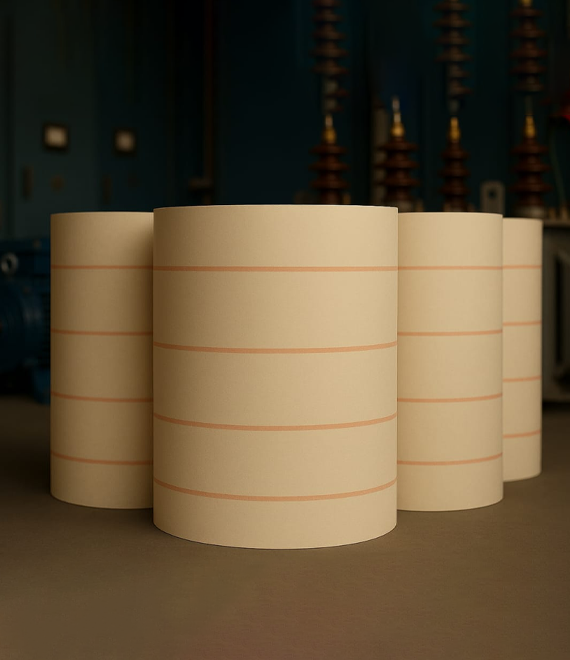

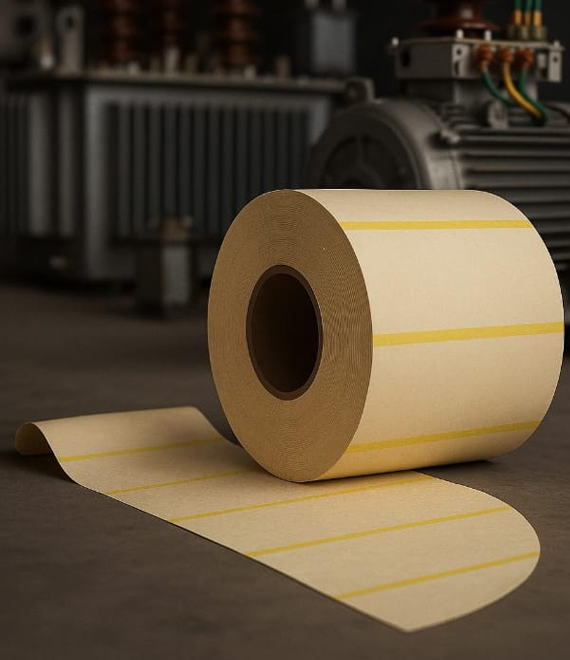

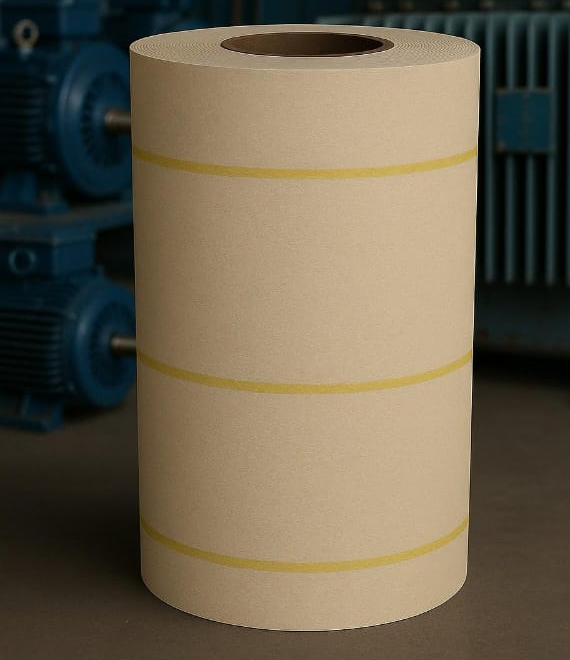

Supplied in roll form and slitted tape. Thickness customizable from 0.10 mm to 0.50 mm. Width as per customer specification. Printable options available with branding.
Compliance & Testing:
Conforms to IEC 60626 and relevant IS/ASTM standards. In-house testing for dielectric strength, tensile properties, and heat resistance. ERDA certified and tested.
