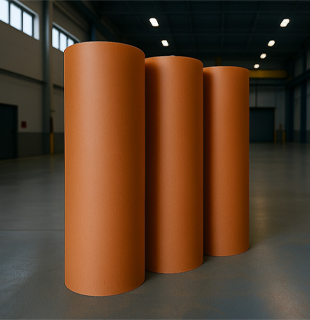

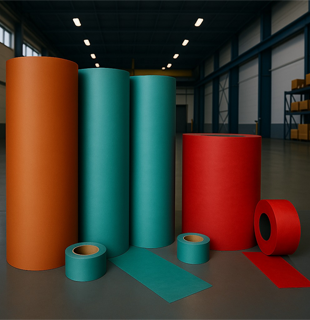

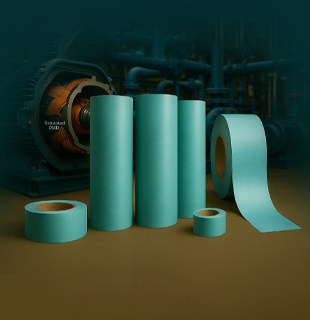

Saturated DMD Laminates
Saturated DMD Laminates
Enhanced dielectric properties with resin saturation
Brand: METATHERM
Category: Electrical Insulation Laminates
Product Overview:
METATHERM-S is Chirag Laminates' factory-impregnated Dacron-Mylar-Dacron (DMD) laminate. Each polyester-fleece face is pre-saturated with a heat-curable resin before bonding to the central polyester film, producing a dimensionally stable, non-porous laminate that eliminates shop-floor varnish dips, shortens winding cycles, and provides a smooth, lint-free surface for high-speed insertion
Key Features:
-
Factory-saturated fleece - no additional VPI or dipping needed
-
Class F thermal endurance (155 C)
-
Dielectric strength >= 14 kV/mm
-
Smooth, sealed surface for automatic slot-liner inserters
-
Low moisture uptake; reduced tracking/corona risk
-
Minimal shrinkage or curl during heat cycles
-
Excellent fold and crease resistance for tight bends
Applications:
-
Slot liners, wedges, and phase insulation in LV & MV motors
-
Stator/rotor coil layer insulation for pumps, compressors, HVAC drives
-
Edge wrapping and spacer packs in oil-filled distribution transformers
-
Control-gear coils, solenoids, and chokes where varnish processing is skipped
-
Fast-cycle repair shops needing 'cut-and-fit' insulation without extra impregnation
Saturated DMD Laminates provide enhanced performance in high-temperature and high-voltage environments due to resin saturation.
Product Variants:
Standard Saturated DMD: Basic resin-saturated
composition.
Uncalendered DMD laminates : Uncalendered dmd flexible
lamintes for interwing insualtion.
Form Available:
-
Master rolls: 1 000 +/- 10 mm width, OD <= 470 mm
-
Slit tapes: 6 - 600 mm widths (3" or 1" cores)
-
Sheets & die-cuts: CNC-profiled liners, barriers, wedges
Compliance & Testing:
-
Meets IEC 60626-3 Type FM
-
Approved for UL 1446 Class F insulation systems
-
RoHS & REACH compliant - halogen-free
