DMD Laminates
Dacron-Mylar-Dacron for superior dielectric strength
Brand: METATHERM
Category: Electrical Insulation Laminates
Product Overview:

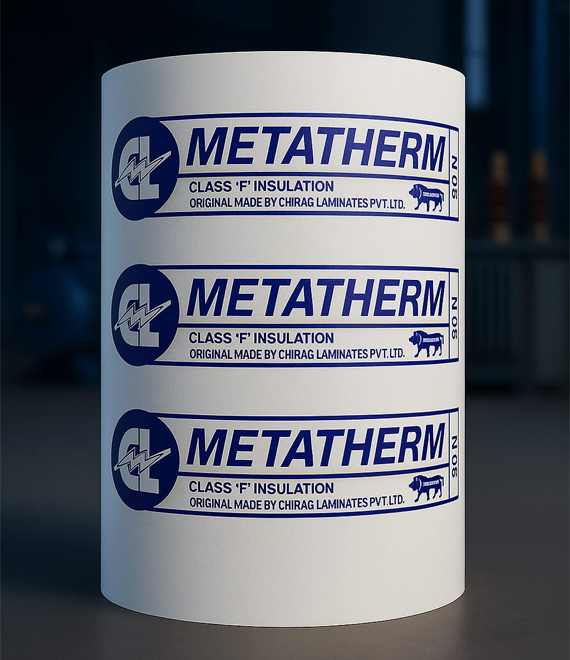

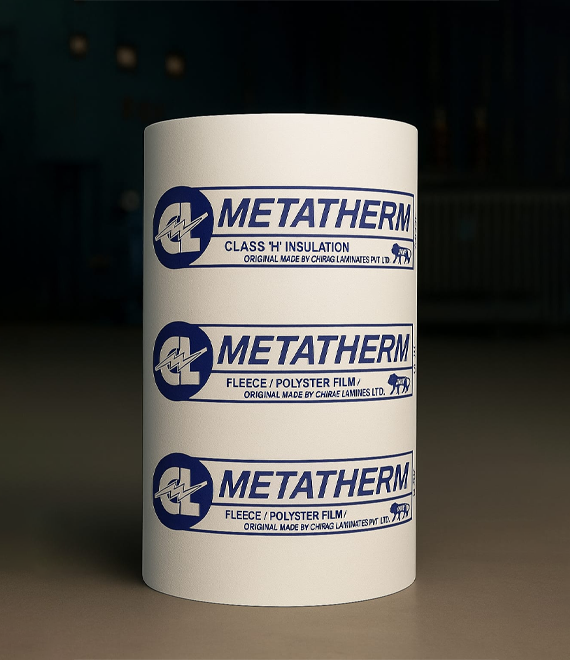

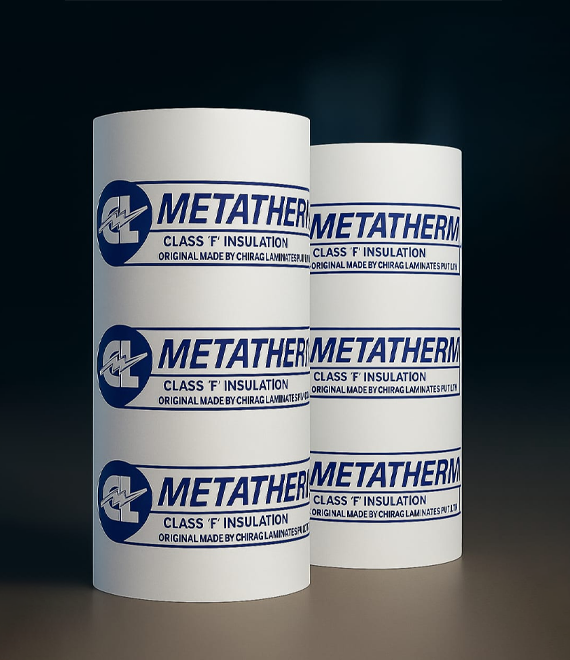

Chirag Laminates' METATHERM DMD Laminates are a composite material made from Dacron, Mylar, and Dacron layers, offering superior dielectric strength and insulation properties. Designed for Class B (130°C) and Class F (155°C) applications, these laminates provide excellent mechanical strength and thermal resistance, making them ideal for electrical motors, transformers, and other high-voltage equipment.
Key Features:
-
High dielectric strength for reliable insulation
-
Thermal resistance up to 155°C (Class F)
-
Excellent mechanical durability
-
Low moisture absorption
-
Compatible with automated processing
Applications:
-
Slot lines, interlayer insulation in electric motors.
-
Interlayer insulation in transformers
-
Insulation for high-voltage coils
-
Phase insulation in generators
DMD Laminates provide robust insulation, ensuring safety and efficiency in demanding electrical environments.
Product Variants:
Saturated DMD Laminates: resin impregnated dmd laminates
for
superior performance and improved thermal stability.
Uncalendered DMD Laminates: Uncalendered dmd flexible
laminated for interwinding insulation.
Form Available:

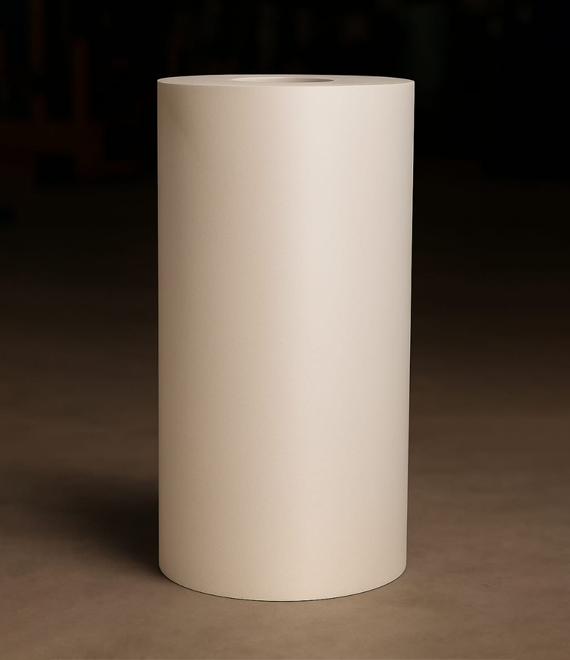

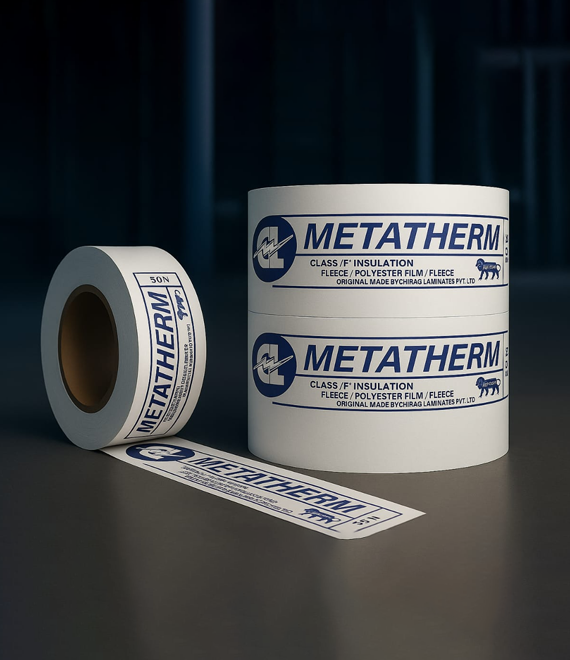

Available in roll form and sheets. Thickness ranges from 0.15 mm to 0.50 mm. Custom sizes available upon request.
Compliance & Testing:
Complies with IEC 60626 and ASTM standards. Tested for dielectric strength and thermal endurance. ERDA certified.
