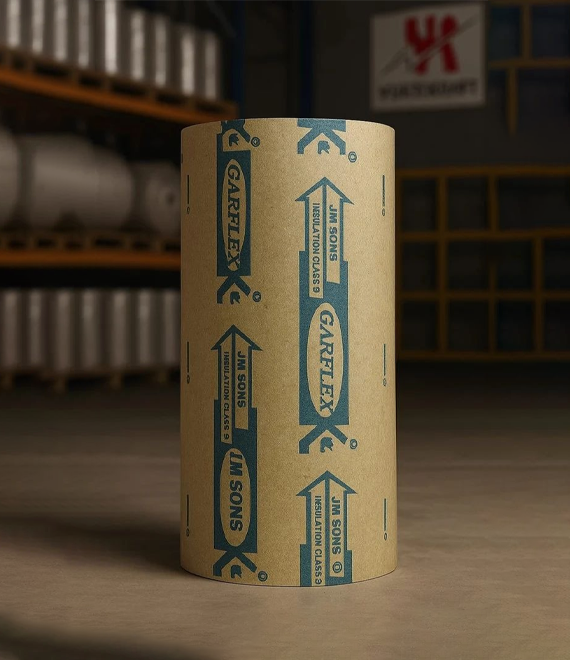

GARFLEX Pressphan Laminates

Brand: GARFLEX

Category: Electrical Insulation Laminates

Product Overview:

GARFLEX Pressphan Laminates are cellulose-based electrical-grade Pressphan bonded to polyester film with a high-temperature adhesive system. The kraft-cellulose facings deliver excellent oil absorption and mechanical rigidity, while the central PET core provides dimensional stability and tear resistance. Designed for Class A (105 °C) and Class E (120 °C) insulation systems, GARFLEX laminates are the trusted choice for power-equipment manufacturers that need cost-effective, eco-friendly insulation with proven dielectric reliability.

Key Features:

High oil absorption & impregnation affinity: Ensures void-free insulation in oil-immersed transformers and reactors
Excellent dielectric strength: Typically > 12 kV/mm across the laminate
Good mechanical rigidity & compressive strength: Keeps slot liners and spacers stable during winding and impregnation
Stable in transformer oil & ester fluids: No delamination, swelling or fibre shedding after long-term ageing

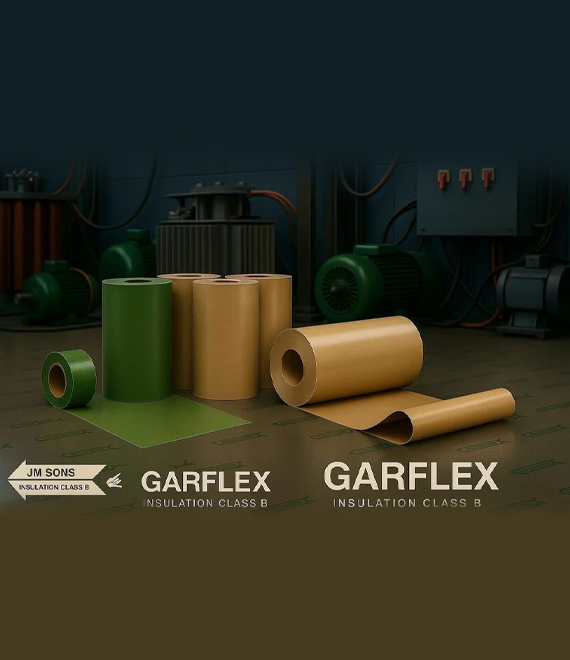

Customisable colour coding: Brown (Industrial grade) or Green (Commercial grade) for quick shop-floor identification
Halogen-free & recyclable: Meets modern sustainability requirements

Send Enquiry

Download Technical (Industrial)

Download Technical(Commercial)

Applications
Additional Information

Applications:

Slot liners, phase insulation and interlayer barriers in low- to medium-voltage motors
Layer, barrier and core wrapping in oil-filled distribution transformers up to 33 kV
End-filling rings and spacers in dry-type transformers
Bus-bar insulation and packers in switchgear and reactors
Electrical appliances (fans, mixer-grinders, pumps) that require economical Class A/B/E insulation

Product Variants:

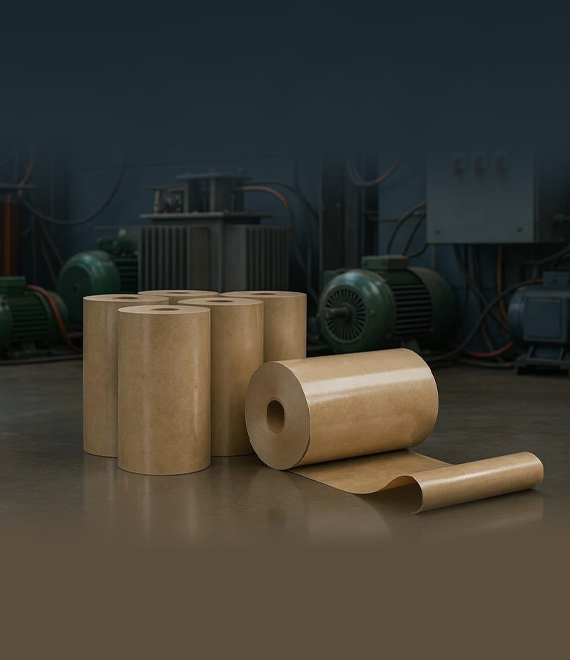

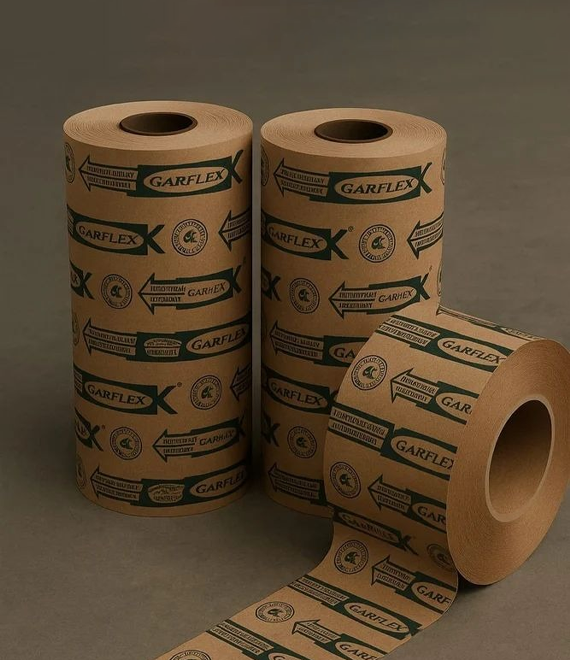

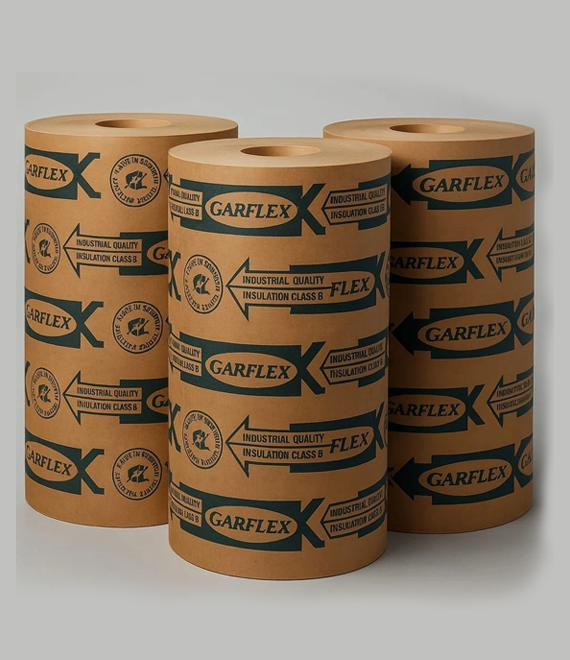

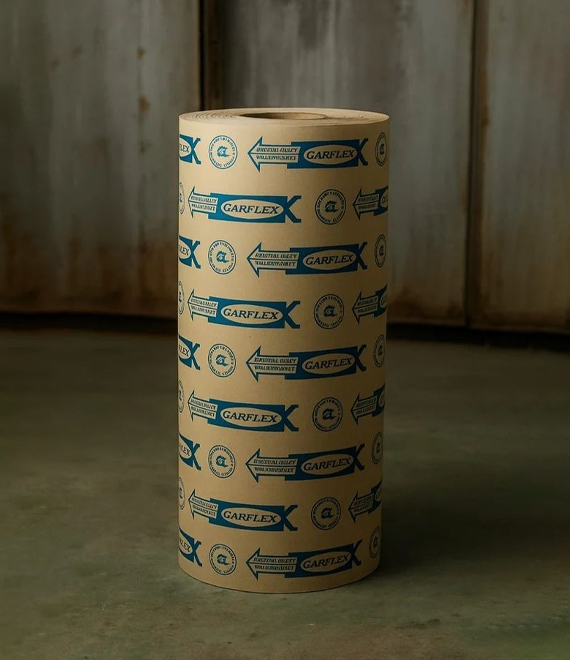

GARFLEX Brown: Industrial-grade kraft/PET/kraft laminate (0.18mm to 0.30mm)

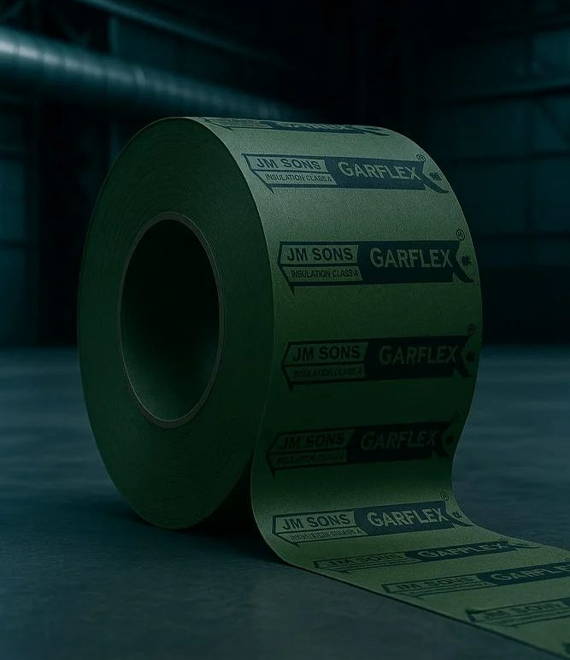

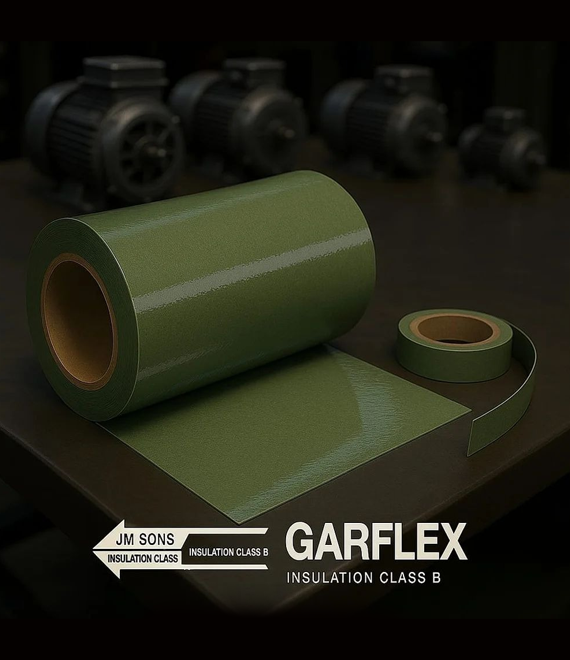

GARFLEX Green: Commercial-grade kraft/PET/kraft laminate (0.18mm to 0.30mm)
GARFLEX Plus: High-rigidity, double-pressed version for transformer spacers (0.20 - 0.35 mm)
*Other thicknesses available on request.

Form Available:

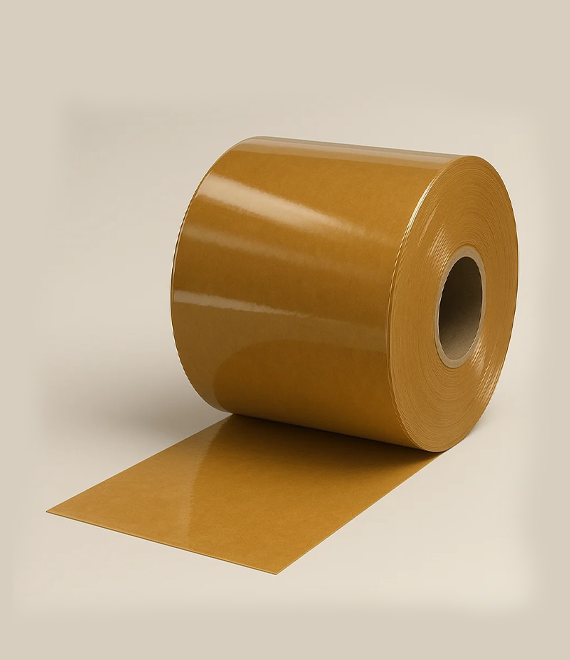

Roll form: Standard width 805 mm; slit widths from 10 mm upward
Tape form: Supplied on 3-inch or 1-inch cores for automated taping lines
Sheets & punched parts: CNC-profiled slot liners, spacers and barriers
Minimum order quantities are flexible for development batches.

Compliance & Testing:

Conforms to IEC 60641-3 Type B3.1 / B3.3 (pressboard laminates)
Factory-tested for:
- Dielectric strength (ASTM D149)
- Tensile & elongation (ISO 1924-2)
- Oil-compatibility & dimensional stability (IEC 60641)
